Cloud Custodian Joint-review

This joint-review relied heavily on the self-assessment provided by the Cloud Custodian (c7n) project. The Security TAG volunteers collaborated with the project volunteers to review the self-assessment, and discussed the operational scenarios pertinent to a typical c7n user.

The general opinion of the volunteer review team is that the c7n project clearly demonstrates a commitment to security, and a willingness to improve security for the benefit of the user community. That said, the project volunteers could use additional security volunteers to assist in ongoing reviews, security control enhancements, and when needed to debug and fix security flaws. As a utility tool, the review team feels the primary threat to the project is compromise of the code itself, and packaging and distribution of the tool or its dependencies - rather than an attack on individual c7n deployments. A secondary concern would be the disabling or DoS of a deployment by an internal or external actor - thus giving the user a false sense of security when c7n is disabled. A tertiary concern is the provisioning of too permissive a policy within the cloud environment for c7n; this would make it an attractive target for lateral movement and other activities for an attacker who had gained access via some other means. Finally, comprehensive support for Kubernetes is not currently available; the review team would like to see more active support for Kubernetes and other CNCF projects as c7n matures.

A “hands-on” penetration test was not performed, nor was a comprehensive code review, code fuzzing, or code audit. The review team strongly recommends pursuing this as a follow up with appropriate CNCF support and guidance.

Table of Contents

• Cloud Custodian Joint-review
  • Table of Contents
  • Metadata
  • Reviewers and Participants
    • Security links
  • Overview
    • Background
    • Project Goals
    • Project Non-goals
  • Joint-Review Use
  • Intended Use Case
  • Target Users
    • Target Capabilities and How Custodian Impacts.
  • Operation
  • Project Design
    • Features
    • Components
      • Security Functions and Features
  • Configuration and Set-Up
  • Project Compliance

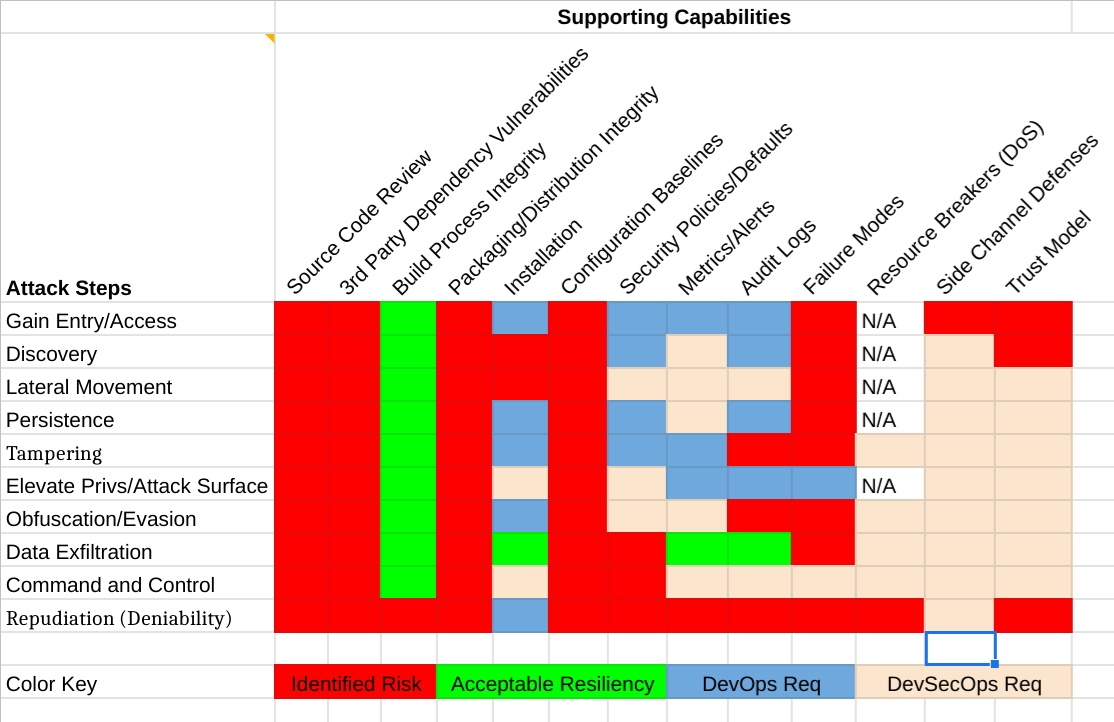

  • Security Analysis
    • Attacker Motivations
    • MITRE ATT&CK Review
    • Predisposing Conditions
    • Expected Attacker Capabilities
    • Attack Risks and Effects
    • Example Attack Scenarios
    • Security Degradation
    • Compensating Mechanisms
    • STRIDE Evaluation
      • STRIDE Classification Considered
      • Control Recommendation (SEVERITY: Medium)
      • Control Recommendation (SEVERITY: Medium)
  • Threat Model
• Secure Development Practices
  • Security Issue Resolution
    • Currently Open Security Issues and Vulnerabilities
  • Hands-on Review
  • Roadmap
    • Recommended Project Next Steps
    • Recommended CNCF Requests
  • Appendix
    • Case Studies

Metadata

Reviewers and Participants

(Date of review closure can/should be determined directly from Git commit timestamps.)

Security links

Overview

Cloud Custodian is a YAML domain specific language (DSL)-based stateless rules engine for cloud auditing, management, and governance.

Cloud Custodian’s policy-as-code:

• Enables deployment of detection controls that enforce or report compliance to organizational policies.
• Supports real-time detection, reporting/notification, and remediation via an API audit trail integration and serverless runtime support.
• Provides consistent outputs and telemetry (blob, logs, trace, metrics) across policies with outputs to provider native services.
• Requires minimal installation requirements, and can be used as a CLI query/investigative or operations tool in a compliance-as-code environment.

Background

Cloud Custodian is a YAML DSL-based stateless rules engine operated via a CLI, easily triggered from a cloud-resident cron task or containerized workload. It supports the practice of policy-as-code — policy being expressed as rules that the CLI uses to check cloud configurations. The code artifacts serve as documentation of the configuration policies in effect in a given environment.

NOTE: Humans must map written compliance or security documented policies to specific Cloud Custodian YAML first.

At the moment, Cloud Custodian supports the most common public cloud providers: AWS, Azure, and GCP. Executed against these environments, with the corresponding YAML rules, Cloud Custodian can check cloud settings via cloud APIs for encryption and access requirements, tagging policies, cost management, removal of abandoned resources, and automated management of resources during off-hours.

Cloud Custodian currently has prototyped Kubernetes cluster support as documented here .

Project Goals

Cloud Custodian integrates with the cloud APIs of each provider to provide checks for enforcement of resource provisioning and configuration policy goals. It can be run as a simple cron job on a server to execute against existing resources. Cloud Custodian is essentially a rules engine for managing public cloud accounts and resources. It allows users to define custom YAML policies as code. It fills a gap where someone needs rules to constrain resource deployment and needs to detect and/or remediate unexpected or unauthorized resource configuration changes, both in a single cloud or multi-cloud environment.

Project Non-goals

Cloud Custodian is not a linter, nor a container runtime engine, nor a general purpose policy engine, or an inventory database. It is not very opinionated on what policies should be defined - only that policy expression is sufficient to define things like a CIS Benchmark policy, or define remediation policies for policy violations.

While it can be used as a security tool, the project itself has asserted it is useful for cost optimization and other non-security purposes. It might be more accurately described as a configuration checking tool, where security is just one type of configuration it can check.

It is left to the user to understand how to map security policy in human terms to configuration checks in machine terms (c7n YAML policies).

Joint-Review Use

This joint-review relied heavily on materials, primarily a Google Doc , created by the project team. This document does not intend to provide a security audit of c7n and is not intended to be used in lieu of a security audit. This document provides users of c7n with a risk and threat overview of c7n. When taken with the self-assessment, this joint-review may provide the community with context and a starting point as part of a formal security audit.

Intended Use Case

The intended use of Cloud Custodian is cloud management. In particular, Cloud Cloud Custodian allows users to audit, monitor, and operationalize configuration checks.

Rules can be defined in the c7n YAML that define remediation actions when a rule is triggered based on configuration checks.

Target Users

Per the Security TAG user personas, Cloud Custodian serves the needs of:

• Enterprise Operator: Cloud Custodian provides reporting and unified metrics that can be consumed by a variety of dashboard platforms, allowing an enterprise operator to not only survey and manage resources, but use the monitoring tools of their choice. This allows an Enterprise Operator to make administrative decisions and take action according to an organization’s policies.
• Quota Operator: Because Cloud Custodian leverages the simplicity of YAML and a CLI, a Quota Operator with more of a financial background than an engineering background can still use it. The same Custodian outputs the Enterprise Operator can use to produce a centralized survey of an organization’s resources and resource activity, a Quota Operator can use to determine resource boundaries from the same reports and metrics. When a resource exceeds its quota, Cloud Custodian can be configured to notify a Quota Operator of it.
• Third-Party Security Product/System: Cloud Custodian’s YAML configuration file enables resource tagging based on filters, and depending on the policy, these tags can be configured to trigger specific actions.
• Platform Implementer: Since Cloud Custodian enables event-based real-time policy enforcement, a Platform Implementer can use the CLI to serve the intersecting needs of the Enterprise Operator, Quota Operator, Security and Compliance Administrators, and Developers. Event-based and real-time Cloud Custodian policies can output reports and metrics for monitoring, respond to policy changes and tag affected resources, enforce compliance, and prevent development from unintentionally harming an organization’s cloud.

Target Capabilities and How Custodian Impacts

Operation

Cloud Custodian can be bound to serverless event streams across multiple cloud providers that maps to security, operations, and governance use cases. Cloud Custodian adheres to a compliance-as-code principle, to allow validation, dry-run, and change control to policies.

Project Design

Features

• Support for public cloud services and resources with a library of actions and filters to build policies with.
• Supports filtering on resources with nested boolean conditions.
• Dry run any policy to see what it would do.
• Automatically provisions serverless functions and event sources (AWS CloudWatchEvents, AWS Config Rules, Azure EventGrid, GCP AuditLog & Pub/Sub, etc).
• Cloud provider native metrics outputs on resources that matched a policy.
• Structured outputs into cloud native object storage of which resources matched a policy.
• Cache usage to minimize api calls.
• Supports multi-account/subscription/project usage.

Components

Security Functions and Features

The project makes the following assumptions regarding mature operational practices when using Custodian in order to limit the attack surface:

• Hardened compute execution environment with minimal additional software components running and minimal inbound access.
• Custodian requires cloud credentials (role, service account/principal) with elevated permissions for introspection and remediation. Access to those credentials should be restricted to the Custodian compute execution environment.
• Custodian cloud credentials should be limited in scope to what is necessary for Custodian policy execution, i.e. minimized access.
• As the policy files are considered trusted inputs – and per IaaC best practices – an audit trail is implemented to validate the assurance of the supply chain through rigorous version and change control mechanisms.

At a project level, to mitigate primary threats to the project and code, the project uses GitHub’s security alerts (dependabot) scanning for CVEs on the dependency graph. Additionally, PRs are reviewed by a growing number of committers to prevent malicious code to be accepted into the code base.

Beyond these, there are few security-specific features, as the project assumes the host cloud and corporate environment itself is hardened and trusted. It remains to see how useful these assumptions would be in a Zero Trust Architecture (ZTA).

Configuration and Set-Up

Cloud Custodian requires a cloud provider IAM policy to access the resources (via API) that it needs to check. In remediation cases, it will need write access. Cloud Custodian needs a policy YAML available to it from the shell. Logs may be created (via stdout or specific cloud logging mechanisms) and these need to be configured and provisioned accordingly (including the filtering of any sensitive data based on logging verbosity.) The sensitivity of the resultant output (including logging to stdout) depends on the use case and may need to be appropriately restricted.

Since Cloud Custodian delegates all security responsibilities to the user and their cloud IAM and execution environment, there is little documentation about potential security risks/trade-offs of the default IAM policy or other cloud environment configuration.

Project Compliance

As of September 2021 there is no external audit or compliance report available to review.

A threat model was constructed previously by the project .

Security Analysis

Attacker Motivations

MITRE ATT&CK Review

Please refer to the Mitre ATT&CK matrix for Enterprise Cloud

TTPs Considered include:

• Drive-by Compromise - it is easy to imagine a watering hole attack on c7n users to update to a new version or apply a c7n security patch which leads to distribution of a malicious Custodian package.
• Phishing , Internal Spearphishing - an attacker may use widespread knowledge of an organization’s use of c7n as a means to target email “alerts” about c7n policy findings to legitimate operators who then engage with the attacker’s spoofed or legitimate looking site to conduct further attacks. c7n’s mailer utility could be abused to send malicious but seemingly legitimate emails to admins. Even if there is no links to use for operator compromise, just confusing or redirecting admins could be part of a well-orchestrated attack plan.
• Trusted Relationship - while not a relationship, per se, admins who casually download c7n source or package distributions from the project site can be easily fooled into downloading malicious packages. However, like codecov, the actual project github repo could be compromised and distribute malicious code or policies.
• User Execution - certainly the users (or service accounts) allowed to execute c7n, and the frequency and modality (ie cli vs serverless task) should be explicitly defined and ideally enforced by some automated means; unusual users executing c7n, or at an increased frequency should raise alarms; not running c7n for a prolonged period could indicate a DoS or other tampering.
• Account Manipulation , Create Account , Domain Policy Modification - certainly if c7n is running with an IAM/AD/LDAP role with write permissions to access control services, c7n itself could be used for privilege elevation attacks, simply by manipulating the c7n policy YAML. See Valid Accounts item below.
• Implant Internal Image - it is plausible that a docker or other container distribution of c7n could become available which is malicious. Inspection of running containers could be easily overlooked and specifically whitelisted as a security tool if seen running what looks to be a legitimate c7n task. This could lull DevSecOps into a false sense of security as c7 would be regarded as a trusted tool.
• Valid Accounts - this is the most likely organizational risk using c7n. Since c7n itself does not provide a tool or documentation on using a least privilege, minimal permission policy, this is left as an exercise to the user. Users who casually grant expansive permissions to c7n risk attackers exploiting this privileged access. Worse, if users do not separate read only c7n actions from remedial write actions, then any abuse of the permissions - even accidental misuse - could increase risks to resources and other accounts and security services.
• Impair Defenses - certainly attackers may attempt to disable or impede c7n, either by preventing execution, or by tampering with the YAML file content, or to prevent alerting or remediation mechanisms, or to DoS the resources running c7n. Worse, if write permissions are granted to c7n’s service/user role, c7n itself could be used to disable or impede other security services. Even innocuous additions to policy YAML could be perceived as legitimate attempts to increase security, but could be abused to increase noise-to-signal and lull DevSecOps into ignoring “false alarms” or induce alert fatigue. There should be a thoughtful balance of actively monitoring c7n alerts to ensure proper controls and operation, but not so much that subtle anomalies are missed.
• Modify Cloud Compute Infrastructure , Data Staging , Data Destruction - as with Account Manipulation, if c7n is running with an IAM/AD/LDAP role with write permissions to IaaS or PaaS services, c7n itself could be used for infrastructure attacks, simply by manipulating the c7n policy YAML. This includes creating temporary resources for staging exfiltration, or deleting data storage resources.
• Unused Cloud Regions - operators should have checks on regions running c7n who should not be running c7n. Similar to this is multiple “organizations” or “subscriptions” that are rarely reviewed.
• Unsecured Credentials - c7n documentation and self-assessment largely delegates this to the operator. As such, it is plausible lazy operators would use hard coded keys or other credentials in scripts or repos, exposing potentially expansive permissions.
• Discovery - broadly speaking, all of the techniques enumerated under the Discovery tactic are exposed by a malicious c7n user, or by use of tampered c7n code or YAML. This is c7n’s intended purpose so in the hands of a sloppy operator or successful threat actor, c7n itself becomes a potent discovery and monitoring tool. Simply intercepting or cc:ing oneself to the alerts or logs could allow for effective reconnaissance.
• Data from Cloud Storage Object ; as noted above, logs or outputs from c7n may be sensitive and should be controlled or purged appropriately
• Resource Hijacking - if c7n code is modified or a false package distributed, a seemingly legitimate c7n task could run that performed other actions, like crypto mining or other resource abuses. As a trusted security tool, c7n activity may go unnoticed or casually inspected.

Predisposing Conditions

Custodian is intended to run in a trusted compute execution node with trusted inputs (policy YAML) and minimized cloud credentials. The dependencies of the python code and the python interpreter themselves must also be trusted.

Custodian typically requires broad read access across an environment to inspect infrastructure configuration. Additionally, when evaluating a policy specifying remediation actions, credentials with write access are necessary.

A variety of potential attackers exist when Cloud Custodian is in use. Given Cloud Custodians monitoring and enforcement nature, malicious actors may be interested in leveraging the reporting of Cloud Custodian to understand the architecture of an environment it is deployed within as well as potentially disabling or negatively modifying the policy enforcement within the environment.

Expected Attacker Capabilities

Assumptions based on Zero Trust environments:

• An attacker is already present within an organization’s cloud compute environments.
• An attacker potentially has access to cloud credentials.
• The Cloud Custodian execution environment has already been exploited.

Attackers could be insiders who already maintain regular privileged access to the environment and have reasonable familiarity with their organization’s deployment of Cloud Custodian. As such, it is expected these attackers will be intimately aware of the Cloud Custodian configuration, policies, deployment, serverless usage, and reporting integration. It is also assumed they may retain ownership permissions to the repository where the configurations for the Cloud Custodian deployment is kept.

Since c7n does not run as a daemon exposed to the internet (or any network), a comprehensive analysis of an external attack is not covered within this document. By definition, a successful external attacker who gains access to the c7n execution environment will likely take advantage of the same attack paths as an insider.

Attack Risks and Effects

Cloud Custodian’s serverless capabilities enable broad access to affect both the availability and confidentiality of the environment it is deployed within. Explicit control and review over Cloud Custodian YAML is an absolute necessity to reduce the success of attack by a malicious insider or opportunistic external intruder.

As a result of the elevated permissions Cloud Custodian requires in order to execute within a given cloud environment, organizations which fail to appropriately secure the identity and access management of their cloud environment may negate any security value Cloud Custodian can provide them.

Likewise, improper understanding and configuration of Cloud Custodian may restrict any organization’s successful use of c7n. It is essential organizations and operators of Cloud Custodian understand their environment’s unique needs and tailor policies for those use cases, else they may inflict self-denial-of-service.

Both internal and external scenarios vary for different cloud providers. Many of the conceptual components of a threat scenario are shared between the clouds, but their manifestations differ based on their specific implementations.

While external attackers are also possible - especially if Custodian is running in a persistent node (e.g. EC2 instance running cron), or even if it is running in a docker container that pulls the latest code from the project which was compromised - a comprehensive analysis of an external attack is not covered within this document. A successful external attack will gain access to the environment and take advantage of the same attack paths as an insider, with a notable exception that they may not also have access to the policy code repository. That being said, if an external attacker were to successfully have improper configurations and policies merged into the source code of the organization’s Cloud Custodian deployment repository, they may grant themselves broader access into an environment and therefore fully replicate insider attack possibilities.

Example Attack Scenarios

• Denial of Service, Tampering: Use lambda:PutFunctionConcurrency to set a Lambda Function’s concurrency setting to 0 which would disable event based compliance checking.
• Information Disclosure: Redirecting Cloud Custodian log output (logs:CreateLogStream, logs:PutLogEvents, logs:CreateLogGroup) to a misconfigured or non-compliant S3 bucket (CLI: custodian run --output-dir s3://<my-bucket>/<my-prefix> <policyfile>.yml), revealing to an attacker detailed metadata about the cloud environment as well as positive Cloud Custodian findings on how it is non-compliant (i.e. vulnerable).
• Spoofing, Elevation of Privileges: Use lambda:CreateFunction and lambda:InvokeFunction, thereby allowing for arbitrary code to be introduced and executed when triggered.
• Alternatively, use lambda:UpdateFunctionCode to update code for an existing Lambda Function which would bypass the need for iam:PassRole. Then use lambda:InvokeFunction to invoke whatever code that you want using the IAM role that the Lambda Function is already attached to. The iam:PassRole permissions are only checked at function creation, not when the function is updated.
• Attacker uses a Cloud Custodian Lambda function to leverage (iam:PassRole) to change Ports on NACLs and Security Groups of PCI Cat 1 applications (potentially leading to Information Disclosure).
• Repudiation: User creates a Cloud Custodian Lambda function that assumes IAM roles from Cloud Custodian to gain keys from the key management service.
• Denial of Service: User creates two Cloud Custodian policies that run in CloudTrail Mode (AWS lambdas are triggered by cloudtrail events to terminate things). Example one policy that terminates instances with encryption turned on and another that kills instances without encryption.

Security Degradation

The project itself is a key target. With a small community, and even smaller approver and project review team, the likelihood that malicious policy content or code or dependencies will be released is non-zero. This would significantly compromise users of Custodian who regularly update from the project git repository or use their python package distribution.

The policy content maintained by the organization is a secondary target. Except at very large organizations, it is likely 1 or 2 users would maintain the entire policy repository with little to no oversight. It is unrealistic to expect smaller organizations to effectively review every policy change.

The cloud permissions granted to Custodian are broad. Neither a secure default policy, nor policy generation or checker/linter tool, nor even adequate documentation exists to guide the new user on how to effectively lock down their policy to the absolute minimum. Even then, the mixing of broad read and write permissions in one policy is itself a risk. Attackers are likely to use Custodian once inside, via other attacks, to move laterally and cover their tracks.

Probably the largest impact of an attack would be to allow attackers to effectively disable Custodian and prevent detection or remediation of their other attacks, potentially even providing a false sense of compliance if no Custodian alerts are reported.

Compensating Mechanisms

The distribution package, commits, or policies are not cryptographically controlled and the python environment itself is difficult to place under a trusted computing base. The project does use Github dependabot for CVE identification and PR generation, but only 3 PRs have been committed, the last in June 2021 at the time of this writing. Github actions are enabled for linting and SAST scans. It is unclear of any committers are dedicated to reviewing these results regularly.

In terms of Custodian’s runtime decision processing, Custodian does not use the cloud API source event as a sole basis for decisions. Instead, it will resolve any resources within the event by ID via the cloud control plane, obtaining the source of truth of the current state of the resource before evaluating the policy filters to ensure the resource matches. If all checks pass, Custodian then proceeds with actions. This does open up a TOCTOU attack, however.

STRIDE Evaluation

STRIDE Classification Considered

Denial of Service Spoofing Elevation of Privilege Tampering Information Disclosure Repudiation

Control Recommendation (SEVERITY: Medium)

New policies should require a GitHub merge and a code review by a second developer who is not also the author, requiring collusion for success.

Control Recommendation (SEVERITY: Medium)

Never allow Cloud Custodian to have more than Poll mode access to prevent a Denial of Service attack.

Threat Model

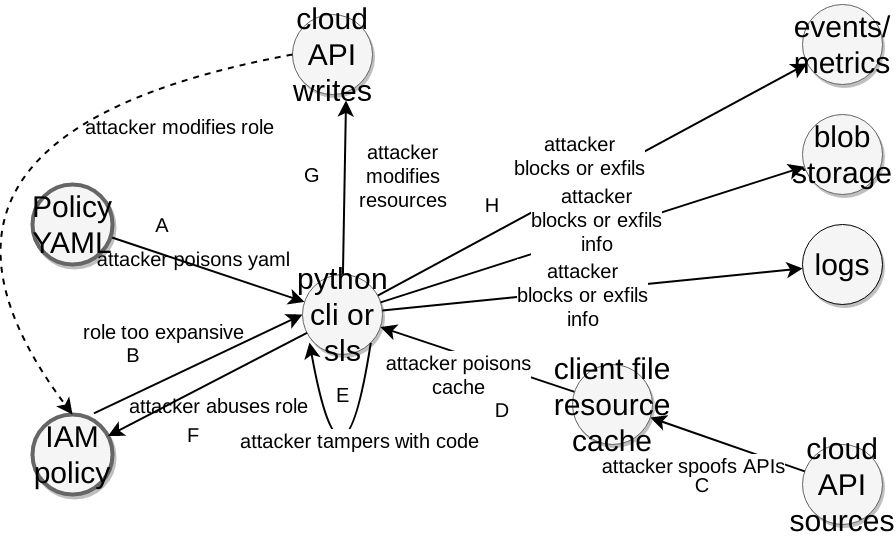

In addition to the components table above, the MITRE ATT&CK TTPS considered above, and the STRIDE evaluation above, below is an overview of key attack boundaries and data flows:

Interesting sequences may include:

• A->G
• A->H
• B->G
• B->D (->G see below)
• B->E (->F see below)
• B->E (->G see below)
• B->F
• B->G->B
• (C | D)->G
• (C | D)->H
• E->F
• E->G
• E->H
• G->E (ie modify the sls image or code fork)

Secure Development Practices

The Review Team examined c7n’s CII badge attestations and github actions source code. The review team suggests further review of using the OSSF Security Scorecard and/or AllStars initiative, and perhaps look at Muse.dev.

Code fuzzing should be a project priority, and the review team discussed this with the project team and LinuxFoundation/CNCF leadership, who generously made fuzzing resources available to the c7n project. PR 6832 addresses this .

Subsequent followup is recommended.

Specific development practices and contact mechanisms are documented in the project’s self-assessment (linked above).

Security Issue Resolution

Mailing list: security@cloudcustodian.io

Currently, there are five total maintainers with two members tasked with full-time response as part of their job

It is unclear if there is an embargo policy and what disclosure timelines are. The self-assessment does indicate “Emails are addressed within three business days” and that “A public disclosure date is then negotiated by the Cloud Custodian Security Team”. Further clarity and following CNCF guidelines would be recommended.

Currently Open Security Issues and Vulnerabilities

As of September 2021, there are no published CVEs.

There are also no open dependabot PRs

For the docker image the following was reported by the github action run: https://github.com/cloud-custodian/cloud-custodian/runs/3476474527

cloudcustodian/c7n:dev (ubuntu 20.04)
=====================================
Total: 32 (UNKNOWN: 0, LOW: 2, MEDIUM: 20, HIGH: 10, CRITICAL: 0)
+----------------------+------------------+----------+--------------------------+---------------+--------------------------------+
|       LIBRARY        | VULNERABILITY ID | SEVERITY |    INSTALLED VERSION     | FIXED VERSION |             TITLE              |
+----------------------+------------------+----------+--------------------------+---------------+--------------------------------+
| bash                 | CVE-2019-18276   | HIGH     | 5.0-6ubuntu1.1           |               | bash: when effective UID is    |
|                      |                  |          |                          |               | not equal to its real UID      |
|                      |                  |          |                          |               | the...                         |
+----------------------+------------------+----------+--------------------------+---------------+--------------------------------+
| coreutils            | CVE-2016-2781    | MEDIUM   | 8.30-3ubuntu2            |               | coreutils: Non-privileged      |
|                      |                  |          |                          |               | session can escape to the      |
|                      |                  |          |                          |               | parent session in chroot       |
+----------------------+------------------+----------+--------------------------+---------------+--------------------------------+
| libc-bin             | CVE-2020-6096    | HIGH     | 2.31-0ubuntu9.2          |               | glibc: signed comparison       |
|                      |                  |          |                          |               | vulnerability in the ARMv7     |
|                      |                  |          |                          |               | memcpy function                |
+                      +------------------+          +                          +---------------+--------------------------------+
|                      | CVE-2021-3326    |          |                          |               | glibc: Assertion failure       |
|                      |                  |          |                          |               | in ISO-2022-JP-3 gconv         |
|                      |                  |          |                          |               | module related to combining    |
|                      |                  |          |                          |               | characters                     |
+                      +------------------+----------+                          +---------------+--------------------------------+
|                      | CVE-2016-10228   | MEDIUM   |                          |               | glibc: iconv program can       |
|                      |                  |          |                          |               | hang when invoked with the -c  |
|                      |                  |          |                          |               | option                         |
+                      +------------------+          +                          +---------------+--------------------------------+
|                      | CVE-2019-25013   |          |                          |               | glibc: buffer over-read in     |
|                      |                  |          |                          |               | iconv when processing invalid  |
|                      |                  |          |                          |               | multi-byte input sequences     |
|                      |                  |          |                          |               | in...                          |
+                      +------------------+          +                          +---------------+--------------------------------+
|                      | CVE-2020-27618   |          |                          |               | glibc: iconv when processing   |
|                      |                  |          |                          |               | invalid multi-byte input       |
|                      |                  |          |                          |               | sequences fails to advance     |
|                      |                  |          |                          |               | the...                         |
+                      +------------------+          +                          +---------------+--------------------------------+
|                      | CVE-2020-29562   |          |                          |               | glibc: assertion failure in    |
|                      |                  |          |                          |               | iconv when converting invalid  |
|                      |                  |          |                          |               | UCS4                           |
+                      +------------------+----------+                          +---------------+--------------------------------+
|                      | CVE-2021-27645   | LOW      |                          |               | glibc: Use-after-free in       |
|                      |                  |          |                          |               | addgetnetgrentX function in    |
|                      |                  |          |                          |               | netgroupcache.c                |
+----------------------+------------------+----------+                          +---------------+--------------------------------+
| libc6                | CVE-2020-6096    | HIGH     |                          |               | glibc: signed comparison       |
|                      |                  |          |                          |               | vulnerability in the ARMv7     |
|                      |                  |          |                          |               | memcpy function                |
+                      +------------------+          +                          +---------------+--------------------------------+
|                      | CVE-2021-3326    |          |                          |               | glibc: Assertion failure       |
|                      |                  |          |                          |               | in ISO-2022-JP-3 gconv         |
|                      |                  |          |                          |               | module related to combining    |
|                      |                  |          |                          |               | characters                     |
+                      +------------------+----------+                          +---------------+--------------------------------+
|                      | CVE-2016-10228   | MEDIUM   |                          |               | glibc: iconv program can       |
|                      |                  |          |                          |               | hang when invoked with the -c  |
|                      |                  |          |                          |               | option                         |
+                      +------------------+          +                          +---------------+--------------------------------+
|                      | CVE-2019-25013   |          |                          |               | glibc: buffer over-read in     |
|                      |                  |          |                          |               | iconv when processing invalid  |
|                      |                  |          |                          |               | multi-byte input sequences     |
|                      |                  |          |                          |               | in...                          |
+                      +------------------+          +                          +---------------+--------------------------------+
|                      | CVE-2020-27618   |          |                          |               | glibc: iconv when processing   |
|                      |                  |          |                          |               | invalid multi-byte input       |
|                      |                  |          |                          |               | sequences fails to advance     |
|                      |                  |          |                          |               | the...                         |
+                      +------------------+          +                          +---------------+--------------------------------+
|                      | CVE-2020-29562   |          |                          |               | glibc: assertion failure in    |
|                      |                  |          |                          |               | iconv when converting invalid  |
|                      |                  |          |                          |               | UCS4                           |
+                      +------------------+----------+                          +---------------+--------------------------------+
|                      | CVE-2021-27645   | LOW      |                          |               | glibc: Use-after-free in       |
|                      |                  |          |                          |               | addgetnetgrentX function in    |
|                      |                  |          |                          |               | netgroupcache.c                |
+----------------------+------------------+----------+--------------------------+---------------+--------------------------------+
| libgcrypt20          | CVE-2021-33560   | HIGH     | 1.8.5-5ubuntu1           |               | libgcrypt: mishandles ElGamal  |
|                      |                  |          |                          |               | encryption because it lacks    |
|                      |                  |          |                          |               | exponent blinding to address   |
|                      |                  |          |                          |               | a...                           |
+----------------------+------------------+          +--------------------------+---------------+--------------------------------+
| libpcre3             | CVE-2017-11164   |          | 2:8.39-12build1          |               | pcre: OP_KETRMAX feature       |
|                      |                  |          |                          |               | in the match function in       |
|                      |                  |          |                          |               | pcre_exec.c                    |
+                      +------------------+          +                          +---------------+--------------------------------+
|                      | CVE-2019-20838   |          |                          |               | pcre: buffer over-read in JIT  |
|                      |                  |          |                          |               | when UTF is disabled           |
+                      +------------------+----------+                          +---------------+--------------------------------+
|                      | CVE-2020-14155   | MEDIUM   |                          |               | pcre: integer overflow in      |
|                      |                  |          |                          |               | libpcre                        |
+----------------------+------------------+          +--------------------------+---------------+--------------------------------+
| libpython3.8-minimal | CVE-2021-23336   |          | 3.8.10-0ubuntu1~20.04    |               | python: Web cache poisoning    |
|                      |                  |          |                          |               | via urllib.parse.parse_qsl and |
|                      |                  |          |                          |               | urllib.parse.parse_qs by using |
|                      |                  |          |                          |               | a semicolon...                 |
+----------------------+                  +          +                          +---------------+                                +
| libpython3.8-stdlib  |                  |          |                          |               |                                |
|                      |                  |          |                          |               |                                |
|                      |                  |          |                          |               |                                |
|                      |                  |          |                          |               |                                |
+----------------------+------------------+----------+--------------------------+---------------+--------------------------------+
| libsqlite3-0         | CVE-2020-9794    | HIGH     | 3.31.1-4ubuntu0.2        |               | An out-of-bounds read was      |
|                      |                  |          |                          |               | addressed with improved bounds |
|                      |                  |          |                          |               | checking. This issue is...     |
+                      +------------------+          +                          +---------------+--------------------------------+
|                      | CVE-2020-9991    |          |                          |               | This issue was addressed with  |
|                      |                  |          |                          |               | improved checks. This issue is |
|                      |                  |          |                          |               | fixed in...                    |
+                      +------------------+----------+                          +---------------+--------------------------------+
|                      | CVE-2020-9849    | MEDIUM   |                          |               | An information disclosure      |
|                      |                  |          |                          |               | issue was addressed with       |
|                      |                  |          |                          |               | improved state management.     |
|                      |                  |          |                          |               | This issue...                  |
+----------------------+------------------+          +--------------------------+---------------+--------------------------------+
| libtasn1-6           | CVE-2018-1000654 |          | 4.16.0-2                 |               | libtasn1: Infinite loop in     |
|                      |                  |          |                          |               | _asn1_expand_object_id(ptree)  |
|                      |                  |          |                          |               | leads to memory exhaustion     |
+----------------------+------------------+          +--------------------------+---------------+--------------------------------+
| login                | CVE-2013-4235    |          | 1:4.8.1-1ubuntu5.20.04.1 |               | shadow-utils: TOCTOU race      |
|                      |                  |          |                          |               | conditions by copying and      |
|                      |                  |          |                          |               | removing directory trees       |
+----------------------+                  +          +                          +---------------+                                +
| passwd               |                  |          |                          |               |                                |
|                      |                  |          |                          |               |                                |
|                      |                  |          |                          |               |                                |
+----------------------+------------------+          +--------------------------+---------------+--------------------------------+
| python-pip-whl       | CVE-2020-26137   |          | 20.0.2-5ubuntu1.6        |               | python-urllib3: CRLF injection |
|                      |                  |          |                          |               | via HTTP request method        |
+----------------------+------------------+          +--------------------------+---------------+--------------------------------+
| python3.8            | CVE-2021-23336   |          | 3.8.10-0ubuntu1~20.04    |               | python: Web cache poisoning    |
|                      |                  |          |                          |               | via urllib.parse.parse_qsl and |
|                      |                  |          |                          |               | urllib.parse.parse_qs by using |
|                      |                  |          |                          |               | a semicolon...                 |
+----------------------+                  +          +                          +---------------+                                +
| python3.8-minimal    |                  |          |                          |               |                                |
|                      |                  |          |                          |               |                                |
|                      |                  |          |                          |               |                                |
|                      |                  |          |                          |               |                                |
+----------------------+                  +          +                          +---------------+                                +
| python3.8-venv       |                  |          |                          |               |                                |
|                      |                  |          |                          |               |                                |
|                      |                  |          |                          |               |                                |
|                      |                  |          |                          |               |                                |
+----------------------+------------------+----------+--------------------------+---------------+--------------------------------+

Hands-on Review

Although some of the reviews have previously used c7n in AWS, both as cli and in Lambda, Cloud Custodian did not receive a joint hands-on review from TAG-Security.

Roadmap

The project roadmap is broken out into core roadmap, as well as for individual infrastructure providers using GitHub projects. However, the maintenance of this roadmap board seems a bit stale since the only In Progress item was last updated Jan 22, 2020.

TAG Recommendation

• Project should consider recruiting a security lead or security reviewer from the TAG or broader community responsible for reviewing all PRs and the security of the repo over time. This would mitigate some of the risks the project has concerning code or repo compromise. As c7n increases its footprint across enterprises, it becomes a very attractive target for nation state actors.
• Documentation improvements should be made to advise and assist operators on how to explicitly lock down the execution environment, even if it is seen as an inherited responsibility. Specific least-privilege examples should be given and examples of dangerous IAM roles and YAML policies discussed.
• The default IAM policies recommended/documented should render c7n minimally operable or even inoperable, and require thoughtful addition of least privilege permissions. A linter or IAM generator script would be a possible enhancement, or links to community examples of such tools.
• The docker image, python environment, all Custodian commits, and external python and YAML files should be controlled using cryptographic mechanisms for integrity. As this is an area of active research in the community, there are many possible tools to address the supply chain and distribution of the c7n tool and docker image securely.
• The c7n code should itself implement some sort of YAML policy integrity and, possibly, efficacy/safety check(s). This may prevent casual tampering of YAML policies once deployed in an organization. For example signing and signature check with Cosign/Sigstore or JWT .
• The project should determine if operators can run separate instances of c7n for detection vs. remediation, and document how to best deploy under segregation of duties principles. This may minimize “blast radius” in the event that a detective c7n environment is compromised. Presumably the remediation environment, and policies, could be more tightly controlled, and more meticulously scrutinized and tested and monitored.
• Finally, the review team suggests that Kubernetes should receive more attention in the project roadmap, as well as support for other CNCF projects, as well as non-CNCF open source, cloud native frameworks (e.g. Istio).

Recommended CNCF Requests

The review team recommends that CNCF continue to offer fuzzing resources, and hopes the project avails itself of these.

The team also recommends an internship funded to create adding a secure default policy, and/or linter/checker, and additional documentation be created to guide new users on locking down their policies.

Finally, we hope that CNCF will fund a formal code audit and lab setup assessment which can subject c7n to real world attacks in a Kubernetes environment, once the project is ready for this with full Kubernetes support.

Appendix

Case Studies

Cloud Custodian is used by thousands of organizations to enforce a fleet of policies that control cloud costs, avoid potential breaches, and meet regulatory requirements across an ever-increasing number of cloud services and providers. Here are a few case studies:

• HBO Max uses Cloud Custodian ( Video ) to speed their security development and automate and enforce hundreds of security rules and policies across multiple cloud accounts and regions.
• JPMC uses Cloud Custodian ( Video ) as standard governance as a code tool for their cloud environments across various technology groups.
• Zapier uses Cloud Custodian ( Video ) to track, alert, and take actions on security misconfiguration.
• Code42 uses Cloud Custodian to automate enforcement of various AWS cost, security, and compliance policies.

Related Projects / Vendors

In some sense OPA conftest could be used for some of the same checks. For kubernetes kube-bench is the obvious choice. The primary alternative is the native cloud tooling, eg AWS Config. c7n attempts to be cloud agnostic and/or multi-cloud which makes this more attractive to larger organizations who use multiple clouds. However, lack of robust Kubernetes support may be seen as a problem by those same organizations.
